黑暗感应开关电路
黑暗感应开关电路,DarkSensitiveSwitch
Specifications--------------------------------------------------------------------------------DarkSensitiveSwitchisasimpleprojectwhichoperatesarelaywhenthelightfallingontheLDRgoesbelowasetpoint.Input-12V@55mARelayoutput-NC-C-NOOnboardpresettosetthelevelPower-OnLEDindicatorRelayOnLEDindicatorPowerBatteryTerminal(PBT)foreasyrelayoutputconnectionFourmountingholesof3.2mmeachPCBdimensions44mmx49mm

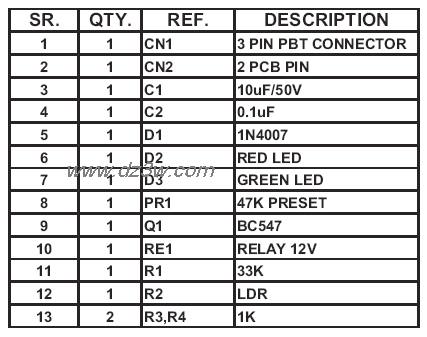

PartsList

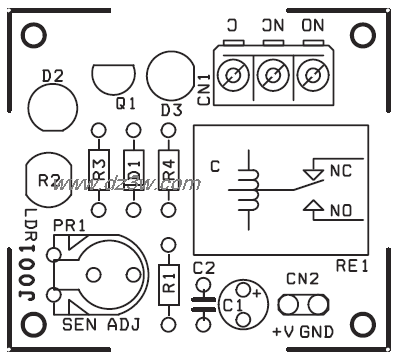

PCB
黑暗感应开关电路
